320x160mm Stations Led Poster Stand With Cascade Connection

Place of Origin Shen Zhen China
Hàng hiệu AVOE LED
Chứng nhận CE RoHS
Model Number AE-P2.5PLD
Minimum Order Quantity 1 unit
Giá bán negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Name LED Poster Display Resolution/mm 2.5mm
LED driving method 1/32 scan Application hotels, restaurants, shopping malls, banks,
Usage Indoor Screen dimension 640*1920mm
Tube chip color Full Color Brightness 1200 cd/m2
Warranty 3~5 Years Pixel density 16000dots/sqm
Làm nổi bật

320x160mm led poster stand

,

cascade connection led poster stand

,

hotels led screen poster

Để lại lời nhắn
Mô tả sản phẩm

P2.5 LED Poster Display for Exhibitions, Airports,Stations with Cascade Connection



Feature

HD Image Quality
Refresh rate up to 3840Hz;
Brightness at 1500nits, 3 times brighter than LCD display;
160°view angle;
High color reproduction;
Compare with indoor LCD poster, with high brightness, super thin & low-power consumption,
LED Digital poster is also suitable for bright occasion.



Product specification

Item Technical parameter
Pixel Pitch 2.5mm
Module Resolution 128*64 dots
Module Size 320x160mm
Pixel configuration 1R1G1B
Module Chip Kinglight/Nationstar
Driving Method 1/32Scan
Physical Density 160,000 dots/m2
LED Encapsulation SMD2121
Module Port BUH75
Module Consumption ≤16W
Brightness 1200 cd/m2

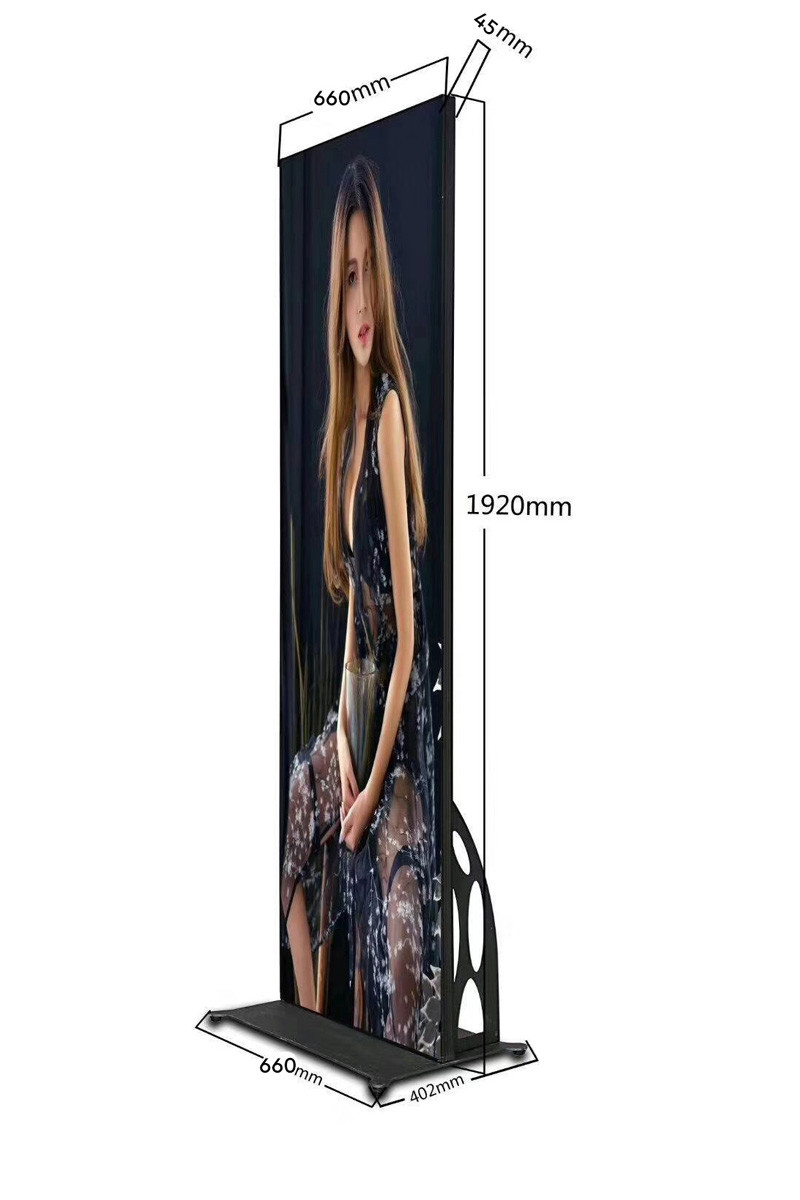

Cabinet Dimension 640*1920mm
Cabinet External Dimensions 700*1980*100mm
Cabinet Resolution 256*768 dots
Quantities of module 2*12
Cabinet Flatness Tolerance of inter pixel ≤0.3mm
Cabinet Material Aluminume,Iron
Cabinet Weight 38KG
Option Distance 2--80M
Viewing Angle Horizontal 140° Vertical 120°
Max. Power consumption 675W/sqm
Driving Device ICN2153IC
Frame Frequency 60Hz
Screen Flatness Tolerance of cabinets ≤0.6mm
Refresh Frequency 1920Hz/3840Hz
Control Mode Wifi asynchronization
Working Environment

Temperature -10℃~60℃

Humidity 10%~70%

Display Working Voltage AC110V/220V , 50Hz/60Hz
Colour temperature 8500K-11500K
Communication distance

Network cable: 100m, Multi-model: 500m,

Single-model fiber: 20km

Gray scale ≥16.7M
MTBF >10,000 hours
Support video source HDMI, CVBS, SDI , DVI etc



320x160mm Stations Led Poster Stand With Cascade Connection 0



320x160mm Stations Led Poster Stand With Cascade Connection 1320x160mm Stations Led Poster Stand With Cascade Connection 2320x160mm Stations Led Poster Stand With Cascade Connection 3320x160mm Stations Led Poster Stand With Cascade Connection 4320x160mm Stations Led Poster Stand With Cascade Connection 5320x160mm Stations Led Poster Stand With Cascade Connection 6320x160mm Stations Led Poster Stand With Cascade Connection 7

Control Methods

Synchronized / asynchronous system
Plug and play, Cross-platform operation
Real time play by connecting to network;
The screen can be controlled with fixed or portable Windows,
IOS & Android devices.
The content can be refreshed and stored in built-in media player
through WIFI or USB to achieve asynchronous play.

320x160mm Stations Led Poster Stand With Cascade Connection 8

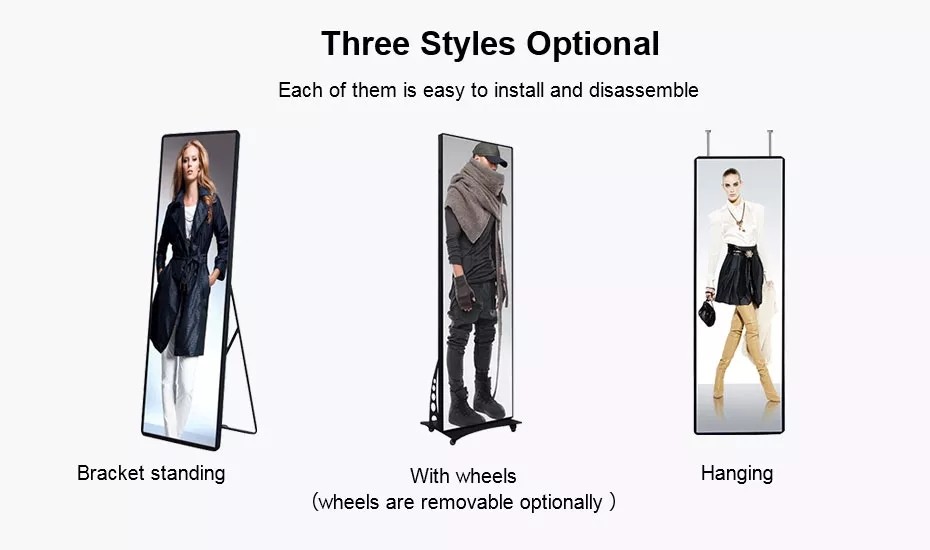

Multi-installation Method

Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation

320x160mm Stations Led Poster Stand With Cascade Connection 9

320x160mm Stations Led Poster Stand With Cascade Connection 10
