P6 Outdoor Fixed LED Display IP65 Waterproof 1R1G1B 960x960mm For Stadium

Place of Origin Shen Zhen China
Hàng hiệu AVOE LED
Chứng nhận CE RoHS
Model Number AV-P6
Minimum Order Quantity Negotiable
Giá bán negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Name Fixed Full Color LED Display Pixel Pitch 6mm
Viewing angle Horizontal 110 Vertical :40 Grey Scale 16.7M
Pixel Compose 1R1G1B LED assembly type SMD2727/3535
Cabinet size 960*960mm Module size 192*192mm
Brightness 6500cd/sqm
Làm nổi bật

Outdoor Fixed LED Display IP65

,

1R1G1B Fixed LED Screen

,

Fixed LED Screen For Stadium

Để lại lời nhắn
Mô tả sản phẩm

P6 Outdoor Fixed LED Display, IP65 Waterproof, 1R1G1B, 960x960mm for Stadium



P6 Fixed led wall screen display outdoor cabinet 960*960mm Waterproof IP65 For Government / Schools/hospital



Features:

1) Reliable quality, advanced and mature technology, compliant with industrialstandards and technology developing trend

2) Better viewing effect

3) The effect of heat emission is good, and the performance is stable

4) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal

5) High resolution and definition of screen image, clear and non-flash screen image

6) Supports video and radio frequency input, special structure can be freely assembled

7) Low cost of operation
8) Short leading time
9) Easy maintenance

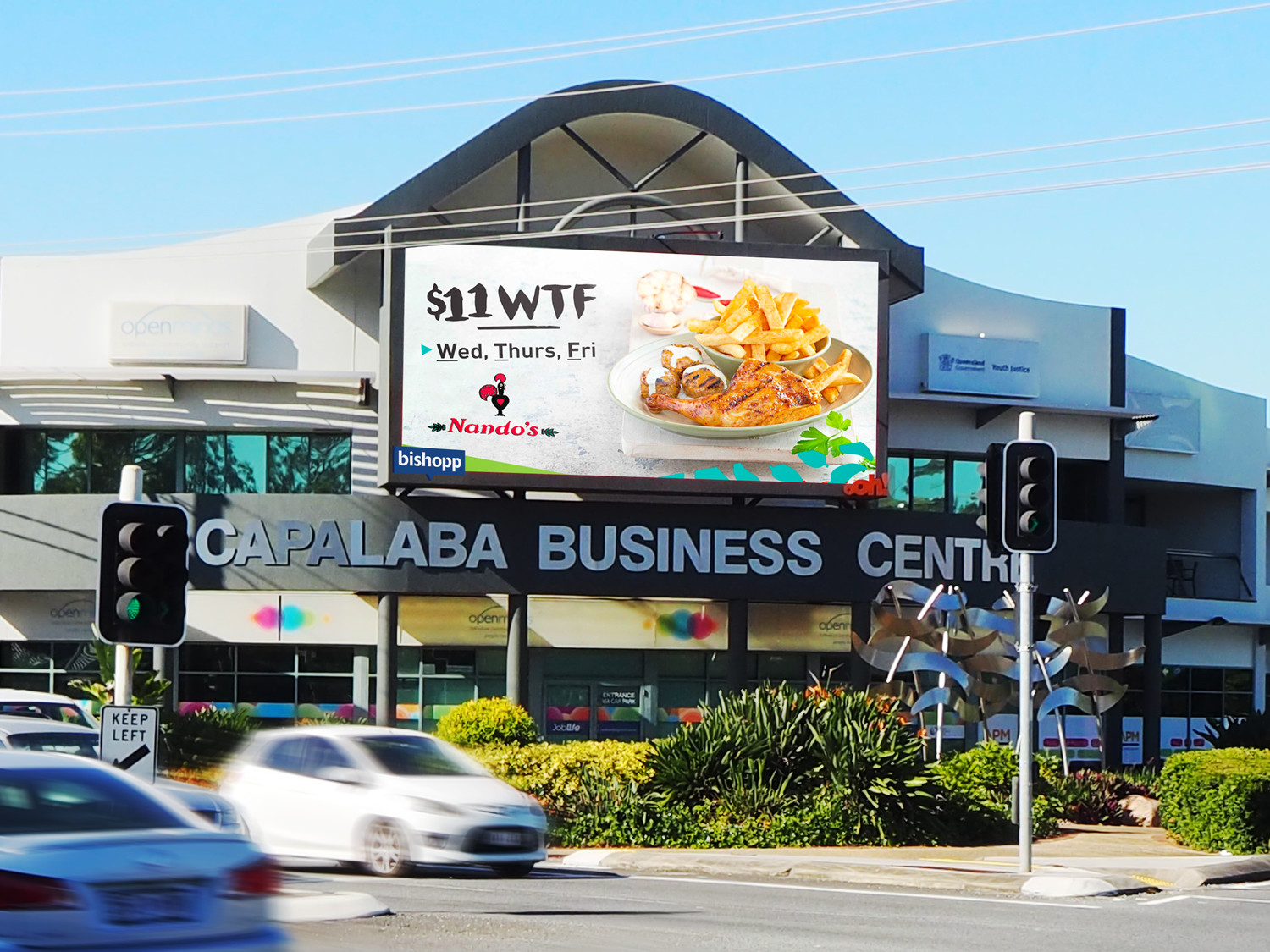

10) Widely used in stadium, bank, restaurant, train and bus station, shopping center,government, schools, entertainment, enterprise, wharfs, airports, emporiums, hospitals, hotels, stock exchanges, construction markets, auction houses, corporate management and other public places,advertising, leasing biz,

large scale sports stadiums, waiting room of railway station, live TV programs, exhibition facilities, artistic centers, entertainment locations, large scale artistic ceremonies, live concerts etc



Specification of P6 Outdoor Fixed LED Display


Specification of P6 Outdoor Fixed LED Display

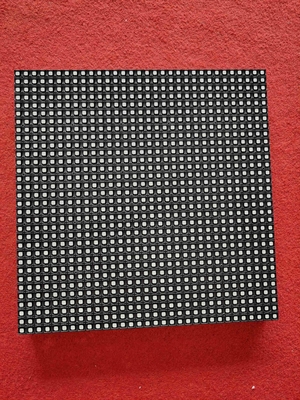

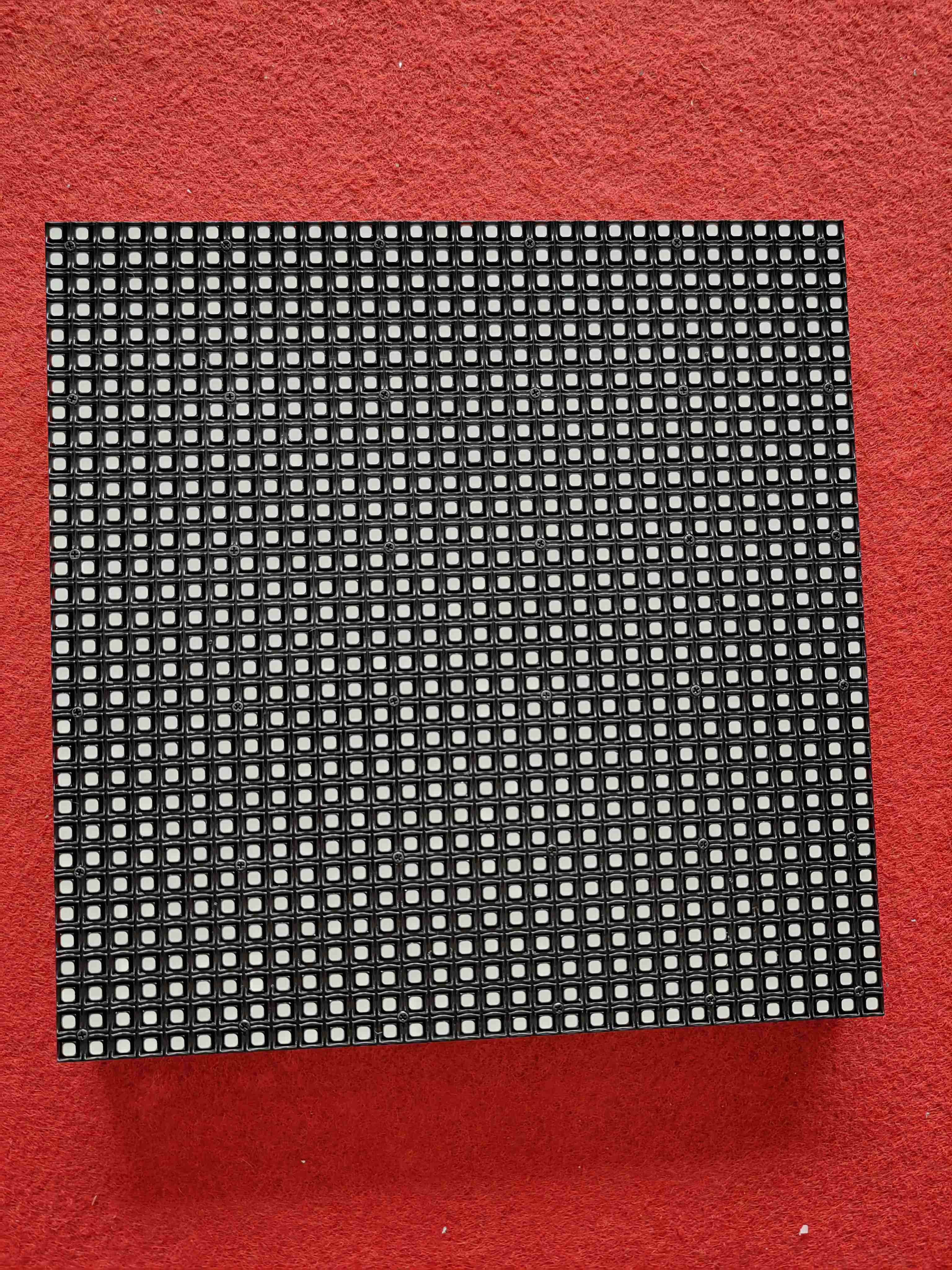

Module
Dimention (w*h) 192x192mm Resolution (w x h) 32x32
Pixel pitch 6mm Pixel Density 27777 dots/㎡
Pixel Configration RGB 3-in-1 LEDs Type SMD3535

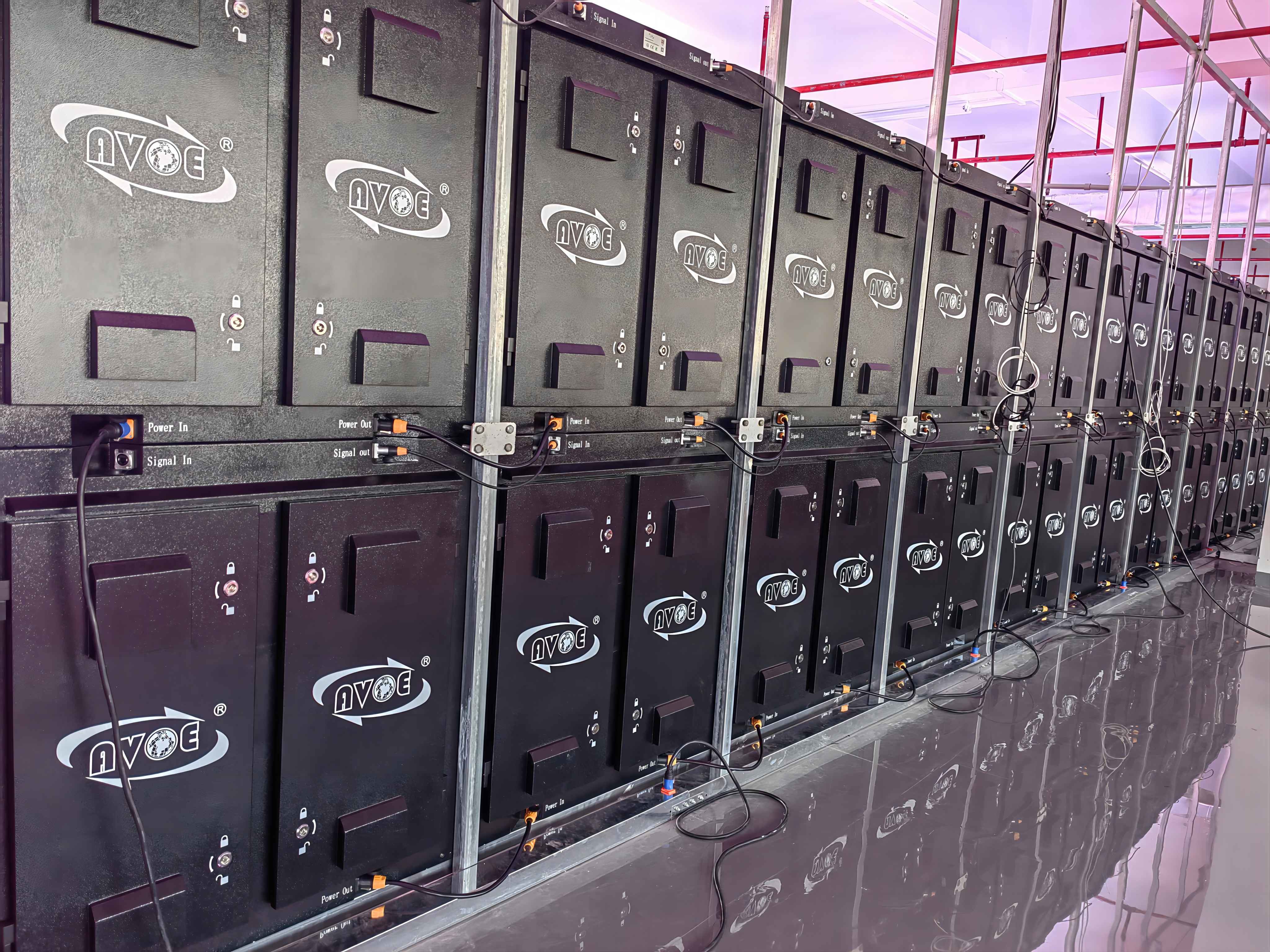

Cabinet
Dimensions(w* h)(mm) 960*960mm Module Quantity(PCS) 25
Physical Resolution (w x h) 160*160 Physical Pixels (total) 25600
Weight/Cabinet (kg) 40 Material steel
Average Power/㎡(watts) 300W Max Power/㎡(watts) 800W
Parameter Value
Brightness ≥ 6000 cd/㎡
Viewing Angle Horizontal 140(+70/-70) deg. Vertical 140(+70/-70)deg.
Best Viewing Distance 6-250meters
Brightness Control 256 level
Gray scale 14bits
Refresh frequency ≥ 1920Hz
Driving mode 1/8 scan constant current driving
Input power frequency 50 or 60 Hertz
Input Voltage 110 ~ 240 Volt
Blind spot rate <1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP65/IP54
Operating temperature ﹣20 ~﹢50 ℃
Operating humidity 10% ~ 90%
Control distance CAT6 cable:<100 m; Single mode fiber:<10 km
Signal input format AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating system Windows (2007/XP/Vista/7/8/10)



P6 Outdoor Fixed LED Display IP65 Waterproof 1R1G1B 960x960mm For Stadium 0

P6 Outdoor Fixed LED Display IP65 Waterproof 1R1G1B 960x960mm For Stadium 1P6 Outdoor Fixed LED Display IP65 Waterproof 1R1G1B 960x960mm For Stadium 2P6 Outdoor Fixed LED Display IP65 Waterproof 1R1G1B 960x960mm For Stadium 3







P6 Outdoor Fixed LED Display IP65 Waterproof 1R1G1B 960x960mm For Stadium 4



P6 Outdoor Fixed LED Display IP65 Waterproof 1R1G1B 960x960mm For Stadium 5



Note:

Indoor LED Display design for indoor video advertising use, the important feature for this products is it can be view with very nearly distance even only 1 meter, and it must be very big view angle up to 140 , so all of our indoor LED display screen are use SMD 3 in 1 of LED for each pixels, the view angle was over 160 both of vertical and horizontal, and the color was mixed due to 3 LED chip into 1 SMD LED.
For controller system, we use advantage design for video graphic scan, there's big output digital signal to show real color. We provide after-service all over the world such as technology support, installation testing and so on.
