Commericial Weatherproof 110° 10mm Outdoor LED Display Board

Place of Origin Shen zhen China
Hàng hiệu AVOE LED
Chứng nhận CE RoHS
Model Number AE-P10OFRGB
Minimum Order Quantity 5sqm
Giá bán negotiable
Packaging Details Flight case, Plywood case.
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10K sqm per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Name Outdoor LED Display Screen Resolution/mm 10mm
Pixel Density(pixel/㎡) 10000 White Balance Brightness (cd/㎡) ≥10000(adjustable)
Max Power Consumption 360W/cabinet Color Temperature 3200-9300(adjustable)
Cabinet size 960*960mm
Làm nổi bật

10mm Outdoor LED Display Board

,

110° Outdoor LED Display Board

,

110° led p10 board

Để lại lời nhắn
Mô tả sản phẩm

P10 Weather Proof Outdoor LED Screen/LED display board For Commericial advertising



Features



1. Big viewing angle to at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.



2. To pictures and character, have clear, exquisite and real display effect.



3. High intensity and can be adjusted, so can meet the request of the customers according the application environment.



4. Thermostatically controlled fan: Unique temperature control design works only when the temperature is higher than the pre-set temperature.



5. Flat screen, no gap. Cabinets were made by high-precision molding plastic injection, no slit on the screen.



6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.



7. The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.



Aplication:

Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;





led Display technical parameter

Pixel Density(pixel/㎡) 10000 pixels
White Balance Brightness (cd/㎡) ≥10000(adjustable)
Max Power Consumption 360W/cabinet
Average Power Consumption 280W/cabinet
Color Temperature 3200-9300(adjustable)
View Angle Horizontal 110°;Vertical 110°
Best Viewing Distance(m) 10m—100m
Display Work Method 1/4 scan
Digital Processing 14 bit
Gray Scale 65536 levels per color
Refresh Frequency (Hz) ≥800
Input Signal Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc
Waterproof Yes
Working Temperature(ºC) -20~+45
Humidity(RH) 10% - 80%
Stored Temperature (ºC) -30~+60
Lifetime (50%Brightness)(Hours) ≥100,000
Input Voltage(VAC) AC 220(or 110V)
Input Power Frequency(Hertz) 50 to 60
Data Connection Super CAT6 Cable or Fiber
Operating System Windows(98/2000/XP/Vista)
Blind Spot Rate <0.00001
Control Distance CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers
Panel Input Format (With Video Processor) VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV
Earth Leakage Current(mA) <2

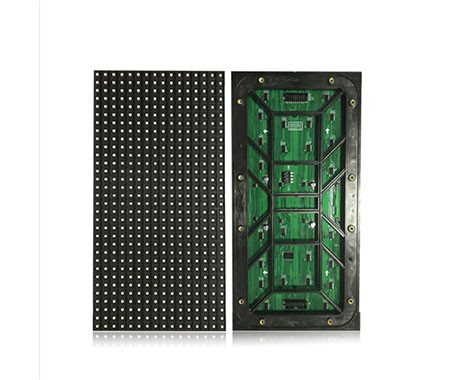

LED Display Module
Pixel Configuration SMD3535 Pixel Pitch 10 mm
Module Resolution 32x16 Module Size(W*H) 320mm x 160mm
Weigth Per Module 0.52kg Max Power Consumption 30W


LED Display Cabinet

Cabinet Size(W*H) 960mm × 960mm Module Qty 18 pcs
Cabinet Resolution 96 x 96 Cabinet Area 0.92
Weight Of One Cabinet 40 kg Cabinet Pixel 10000
Cabinet Flatness <0.2/㎡ Cabinet Material Steel Cabinet



Competitive Advantages:



1. Preminent effects: Clear and stable pictures without distortion and disturbance.

2. High quality: adopting first-class chips and wafers imported from abroad

3. Flexible form: continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on

4. off-line running function: adopting the monolithic design technology and computer string communication way, which can operate in off-line state setting the dates and revising a data via the telephone line



Produce all kinds of Pitch: P4, P4.81, P6 P8, P10,...



Installation Procedure

Commericial Weatherproof 110° 10mm Outdoor LED Display Board 0

Commericial Weatherproof 110° 10mm Outdoor LED Display Board 1Commericial Weatherproof 110° 10mm Outdoor LED Display Board 2Commericial Weatherproof 110° 10mm Outdoor LED Display Board 3Commericial Weatherproof 110° 10mm Outdoor LED Display Board 4
