SMD1212 P1.56 small pixel pitch AVOE LED display Full Color For Broadcasting Studios

Place of Origin Shen Zhen China
Hàng hiệu AVOE LED
Chứng nhận CE RoHS
Model Number AE-P1.56IFRGB
Minimum Order Quantity 5sqm
Giá bán negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Name Fine Pitch LED Display Pixel Pitch 1.56mm
LED Type SMD1212 Module size 320*160mm
Density 42250 dots/㎡ Application control rooms, broadcasting studios, meeting & training room
Screen dimension Customized Tube chip color Full Color
Display function Video,picture,Text,Graphics,animation Brightness 800-1200cd adjust
Life span 100000 Hours Cabinet material Die-casting Aluminum
Làm nổi bật

small pixel pitch led display

,

conference room led display

Để lại lời nhắn
Mô tả sản phẩm

SMD1212 P1.56 small pixel pitch AVOE LED display Full Color For Broadcasting Studios



Product Description:



1. LED Screen design for outdoor video advertising use, the important feature for this products is both of waterproof and brightness under sun, our design are IP65 rate for waterproof, each pixels are combination with red, blue, and green of LED, the brightness was over 6000CD each S.Q.Meter, it's much more brightness under sun.

Also we provide after salesservice all over the world such as technology support, installation testing and provide enought spares for change.

For controller system, we use advantage design for video graphic scan, there's big output digital signal to show real color.



2. LED Display screen for stage rental service design for stage rental company who need quickly fixing the screen in stage, the important feature is all frame made aluminous to reduce the weight, and add lock in the side of frame for air-handing instal, also all rental screen should be made by SMD 3 in 1 LED to show very nearly distance view.


The control system includes video processer, it can be work with laptop, DVD player, camera digital input, S-Video, CRV and so on. It's a idea for stage to make it easy instal and play.


Application:



The full color P1.56 LED Display is widely Indoor video screen,perfectly as mian background for various stage shows,trade shows,concerts,etc,with brilliant video quality,HD image viewing and best viewing distance. It's equipped with fast-locking system,100% no tools installation, very easy to assemble,dismantle and maintenance.

Prices are very competitive, reaching good performance with limited budget.



Product specification





Parameters




Pixel Pitch 1.5mm
Pixel Density 422500 px/m2
LED Type SMD1212
LED Configuration 1R1G1B
Cabinet Dimension 640*480mm
Cabinet Resolution 416*312px
Cabinet Weight 4.6kg
Cabinet Material die-casting
Ingress Protection IP54
Brightness >800nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/52 Scan
Power Consumption(avg.) 220w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 3840Hz
Gray Scale 16bit
Power Supply AC 110/220±10%
50~60Hz
Temperature
(operating/storage)
-20~50°C
-40~60°C
Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥50000 Hours
Pixel Failure <0.0003






*Notes: Specifications are slightly different according to different configurations. Please contact our salesperson for details. All rights are reserved to AVOE.

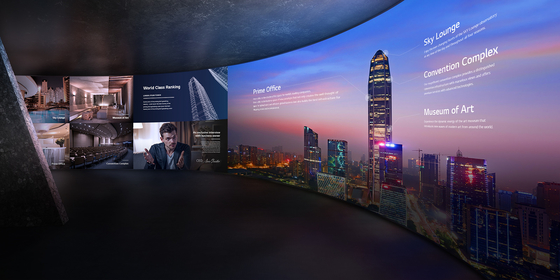

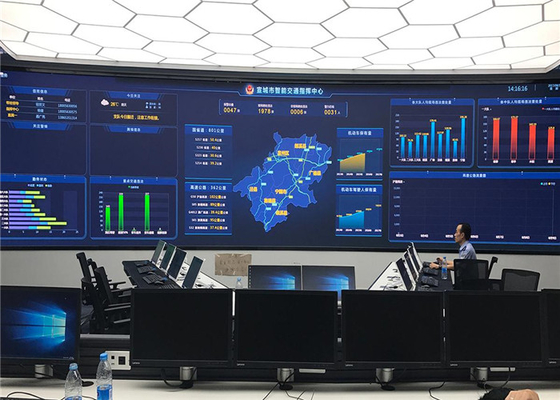

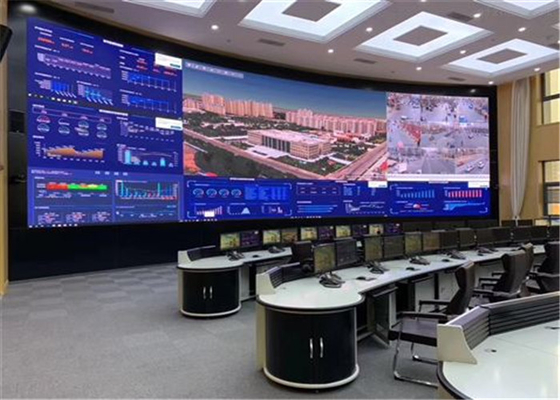

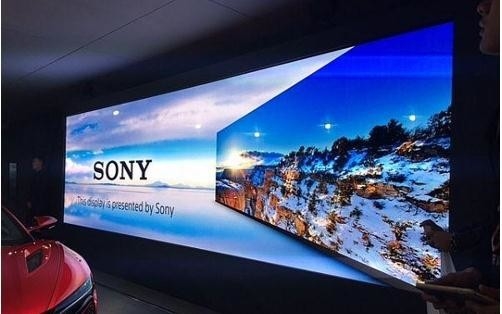

Detailed Pictures

SMD1212 P1.56 small pixel pitch AVOE LED display Full Color For Broadcasting Studios 0SMD1212 P1.56 small pixel pitch AVOE LED display Full Color For Broadcasting Studios 1SMD1212 P1.56 small pixel pitch AVOE LED display Full Color For Broadcasting Studios 2

SMD1212 P1.56 small pixel pitch AVOE LED display Full Color For Broadcasting Studios 3
