P10 Outdoor Led Display Football Stadium Led Display 7500nits /M²

Place of Origin Shen Zhen China
Hàng hiệu AVOE LED
Chứng nhận CE RoHS
Model Number AE-P10OSTRGB
Minimum Order Quantity 5sqm
Giá bán negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Name Stadium LED Screens pixel pitch 16mm
Pixel density/pixels/m² 3096dot/m² LED Configuration 1R1G1B(DIP/SMD)
Serviceability Front or back Application TV live broadcast, Exhibition hall, Performing arts center
Làm nổi bật

stadium perimeter led display

,

stadium led panel

Để lại lời nhắn
Mô tả sản phẩm

P10 Outdoor Led Display Football Stadium Led Display 7500nits /M²​



Features



1, Suspension structure, hanging in the central of the venue, equipped with lifting structure.



2, Assembling structure, the entire funnel structure can be assembled and disassemble easily, it is time saving, labor saving and transportation saving.



3, Seamless splicing, no black or black line in the edges and corners area, the viewing effect is better.



4, Dynamic,compared with the original light box, the four trapezoidal area as gold advertising zone changed to the digital billboard, the broadcast content will be random and the operating income will be more rich.



5, The "3 highs" design, high refresh (3000 HZ), high contrast( 2000:1) and high gray level (65536 )



6, Compatible with a variety of media equipment, and support PAL/NTSC format, CVBS, S - VIDEO, VGA, DVI (HD/SD/PC), HDMI (HDCP/SD/HD/PC), YPbPr, SDI (SD/HD / 3 G) signal.



7, High reliability, considering the demands of high reliability system for live television, we designed the double computers backups (optional), double sending card backups (optional), double receiving card backups (optional), double Ethernet port backups (optional) and the detection function of network error rate.





Application:

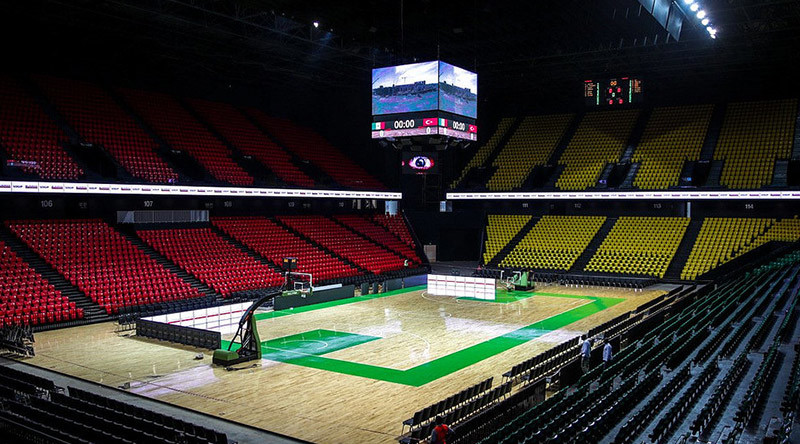

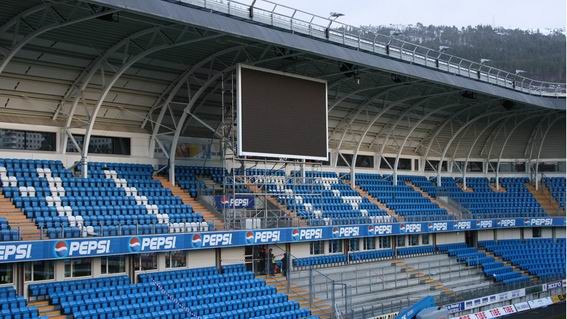

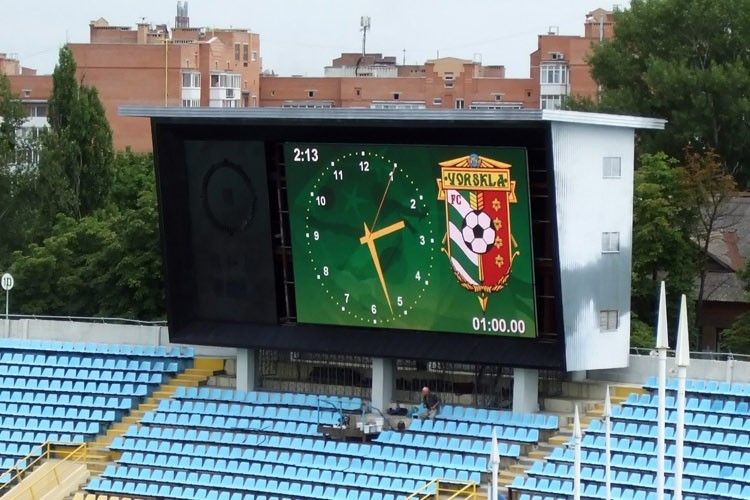

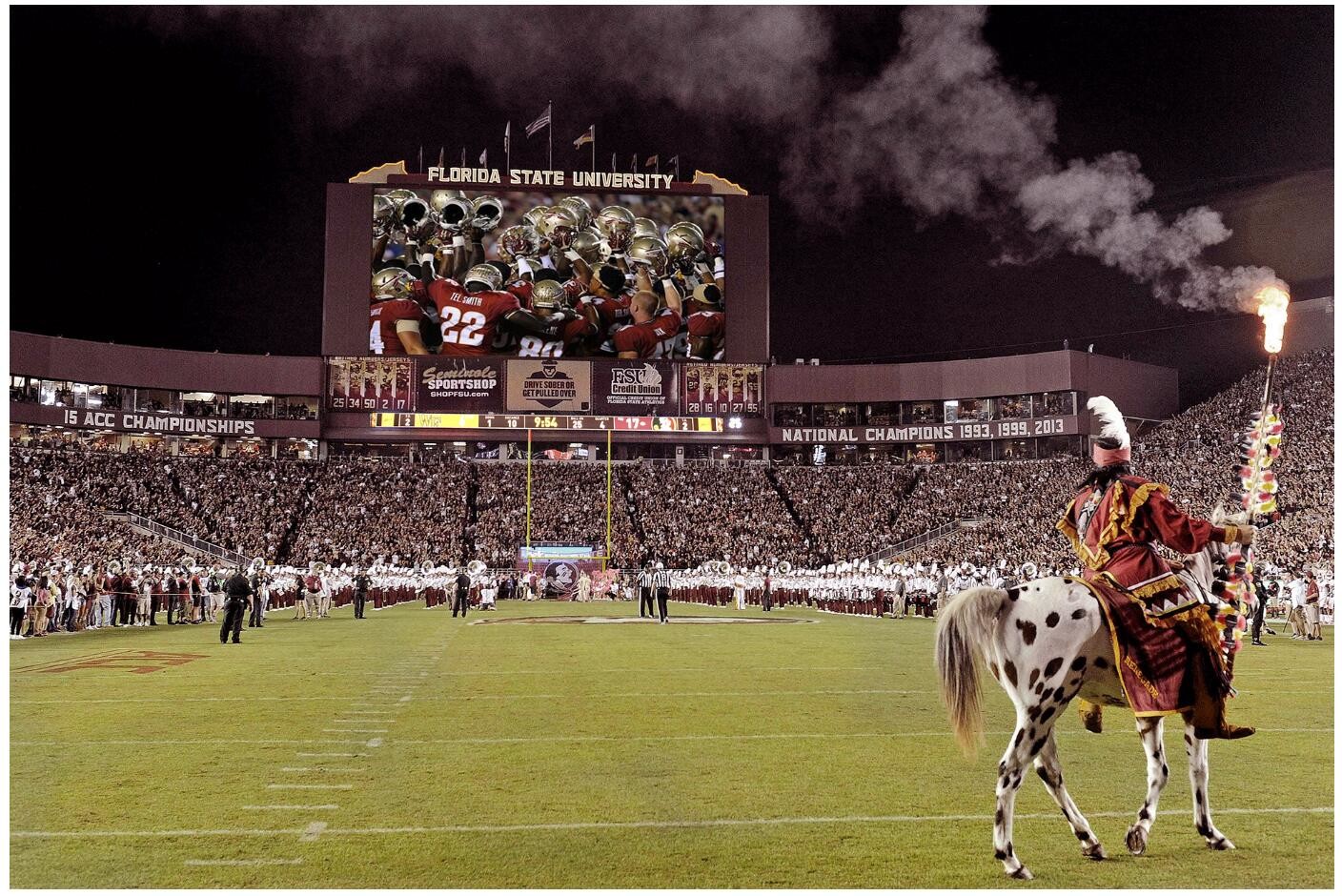

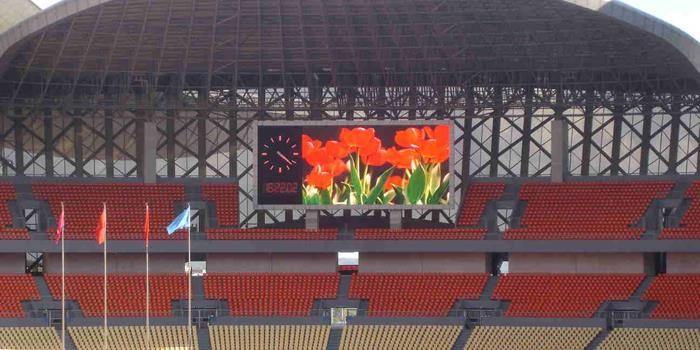

Large stadium, Waiting room, TV live broadcast, Exhibition hall, Performing arts center, Entertainment venue, Large-scale art show, Concert etc.



Specification:



Model P10 P16
Pixel pitch(mm) 10mm 16mm
Brightness( nits /m² ) 7000 7500
Pixel Density 10000dot/m² 3096dot/m²
LED Configuration 1R1G1B(DIP/SMD) 1R1G1B(DIP/SMD)
Tile dimensions(mm) 960*960 1024*768
Power consumption
(Max / Average)
540W/206W 620W/266W
Refresh rate ≥1000Hz ≥1500Hz
IP rating IP65/IP54 IP65/IP54
Serviceability Front or back Front or back
Operating Temperature and humidity -30℃~+50℃/10~90%RH -30℃~+50℃/10~90%RH
Cabinet Weight 57kg 60kg
Viewing Angle(H/V) H: 110°; V:50° H: 110°; V:50°
Certifications(Optional ) ETL, CE, FCC Class A, RoHS




P10 Outdoor Led Display Football Stadium Led Display 7500nits /M² 0P10 Outdoor Led Display Football Stadium Led Display 7500nits /M² 1P10 Outdoor Led Display Football Stadium Led Display 7500nits /M² 2P10 Outdoor Led Display Football Stadium Led Display 7500nits /M² 3P10 Outdoor Led Display Football Stadium Led Display 7500nits /M² 4P10 Outdoor Led Display Football Stadium Led Display 7500nits /M² 5P10 Outdoor Led Display Football Stadium Led Display 7500nits /M² 6

Competitive Advantages:

1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
