P10 LED display Rich Color Sports Ground Advertising Boards , LED screen stadium

Place of Origin Shen Zhen China
Hàng hiệu AVOE LED
Chứng nhận CE RoHS
Model Number AE-P10
Minimum Order Quantity 5sqm
Giá bán negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 10K sqm per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Name Stadium LED Screens pixel pitch 10mm
pixel density 10000dots/sqm Brightness 7000nits/sqm
Cabinet size 960*960*90mm Application Large stadium, Waiting room, TV live broadcast
Làm nổi bật

led stadium advertising boards

,

stadium led panel

Để lại lời nhắn
Mô tả sản phẩm

P10 LED display Rich Color Sports Ground Advertising Boards , LED screen stadium


LED display, rental LED display, flexible LED display
1. Rich color: Full Colors (red, green, blue). LED unit board composed.
In each pixel, there are 256 level gray for red, green and blue representatively, and 16777216 colors in total.
2. High brightness: Super-brightness LED, visual in a long dicstance.
3. Good effect: Non-linear calibration technology, clearer image, stronger layering.
4. High reliability: Distributed scanning technology and module design technique.
5. Diversification of display mode: Support multiple display modes.
6. Easy operation: Regular video player software to enable the system operation very convenient.



Application:

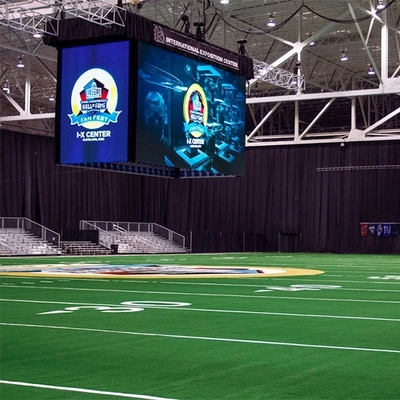

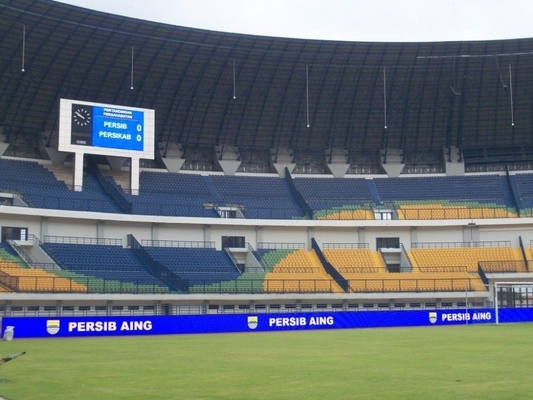

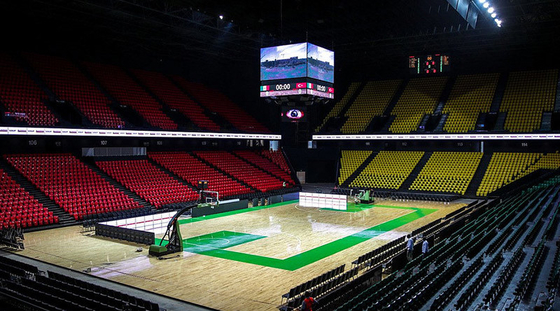

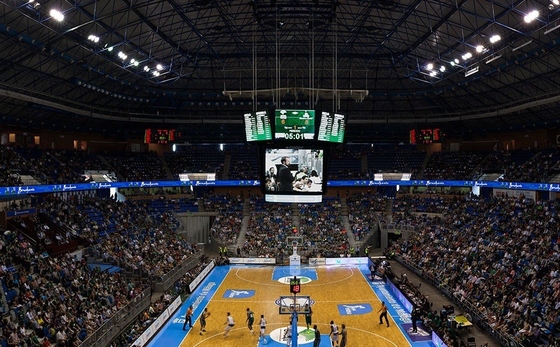

Large stadium, Waiting room, TV live broadcast, Exhibition hall, Performing arts center, Entertainment venue, Large-scale art show, Concert etc.



Item Parameter
Basic parameters Physical pixel pitch:10mm
Physical density:10000point/m 2
Brightness:1000-1400cd cd/m 2
Cabinet size:640mm?480mmx140mm
Module resolution: 64?48
Pixel: 1R1PG1PB   Chip Wave Brightness Origin Packaging
R Sanan 618-628nm 100mcd Yes origin
G silan 520+/_2.5nm 350mcd yes origin
B silan 470+/_2.5nm 80mcd yes origin
Physical resulotion: 9216 pixels/pc
Screen weight: 26KG
Optimal view distance: 10m-150m
Best view angle: Horizontal ?80 degree, vertical ?45 degree
Circumstance temperatureStorage -35 to +85 degree celius, Work -20 to +50 degree celius
Drivers: ICN2038S
Drive mode; Constant current, 1/4scan
Refresh frequency: 400HZ
Module construction: Light and drive in one
Relative humidity: 90 to 95%
Working voltage: DC 220V?10% 50HZ
Average power: 180W/cabinet
Max. power: 530W/cabinet
Constant working time without malfunction: 1000 hours
Lifetime: 100,000 hours
Control system Control system: Linsn
Control mode: Synchronous control, HUB board: high 128 points, 256 points wide
Screen Per square unit
average power consumption per square:180W
Maximum power consumption per square:530W
Cabinet size (recommended size):960mm*960mm*90mm



P10 LED display Rich Color Sports Ground Advertising Boards , LED screen stadium 0P10 LED display Rich Color Sports Ground Advertising Boards , LED screen stadium 1P10 LED display Rich Color Sports Ground Advertising Boards , LED screen stadium 2P10 LED display Rich Color Sports Ground Advertising Boards , LED screen stadium 3P10 LED display Rich Color Sports Ground Advertising Boards , LED screen stadium 4P10 LED display Rich Color Sports Ground Advertising Boards , LED screen stadium 5
